Avilability: In stockEstimated Delivery : 4-10 DAYS

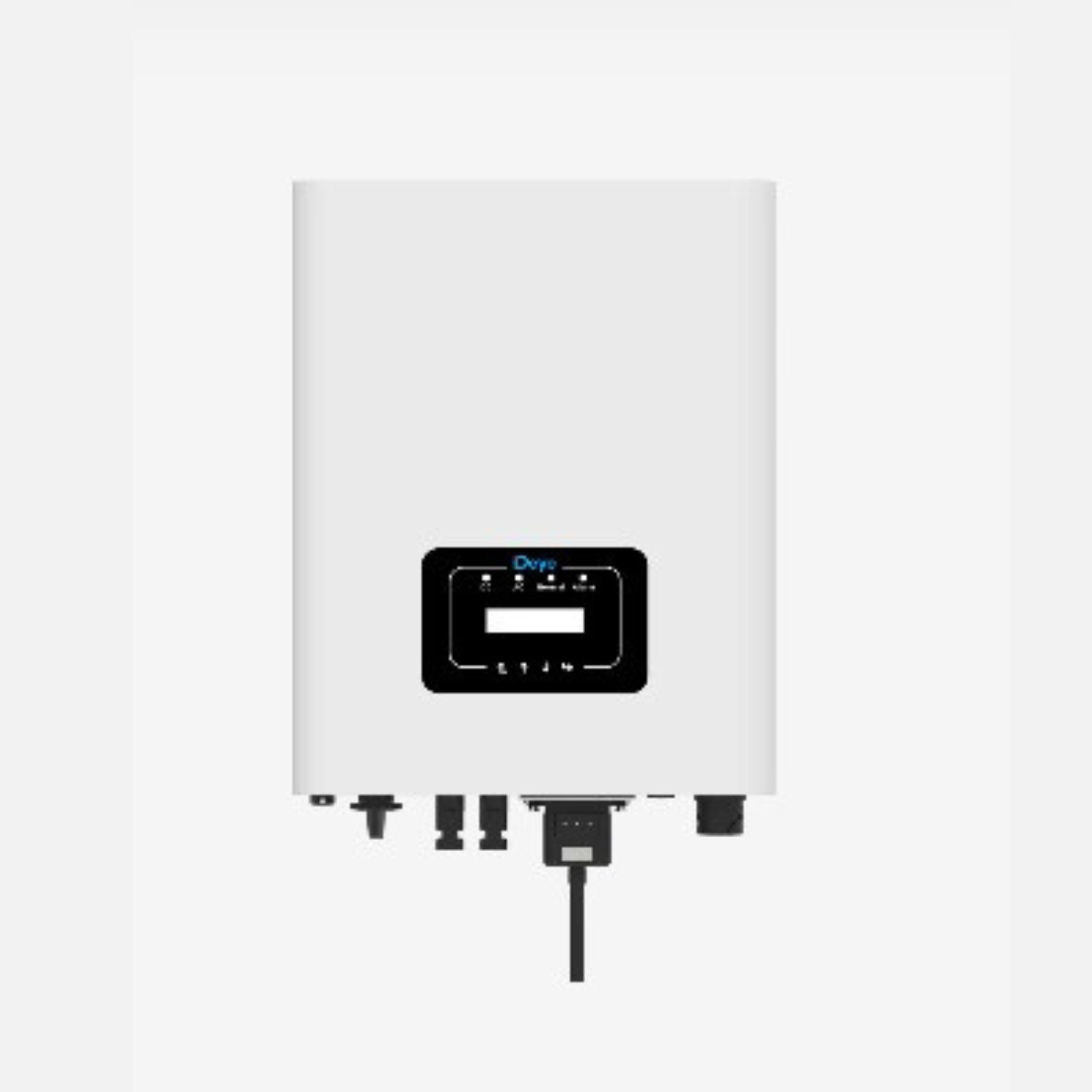

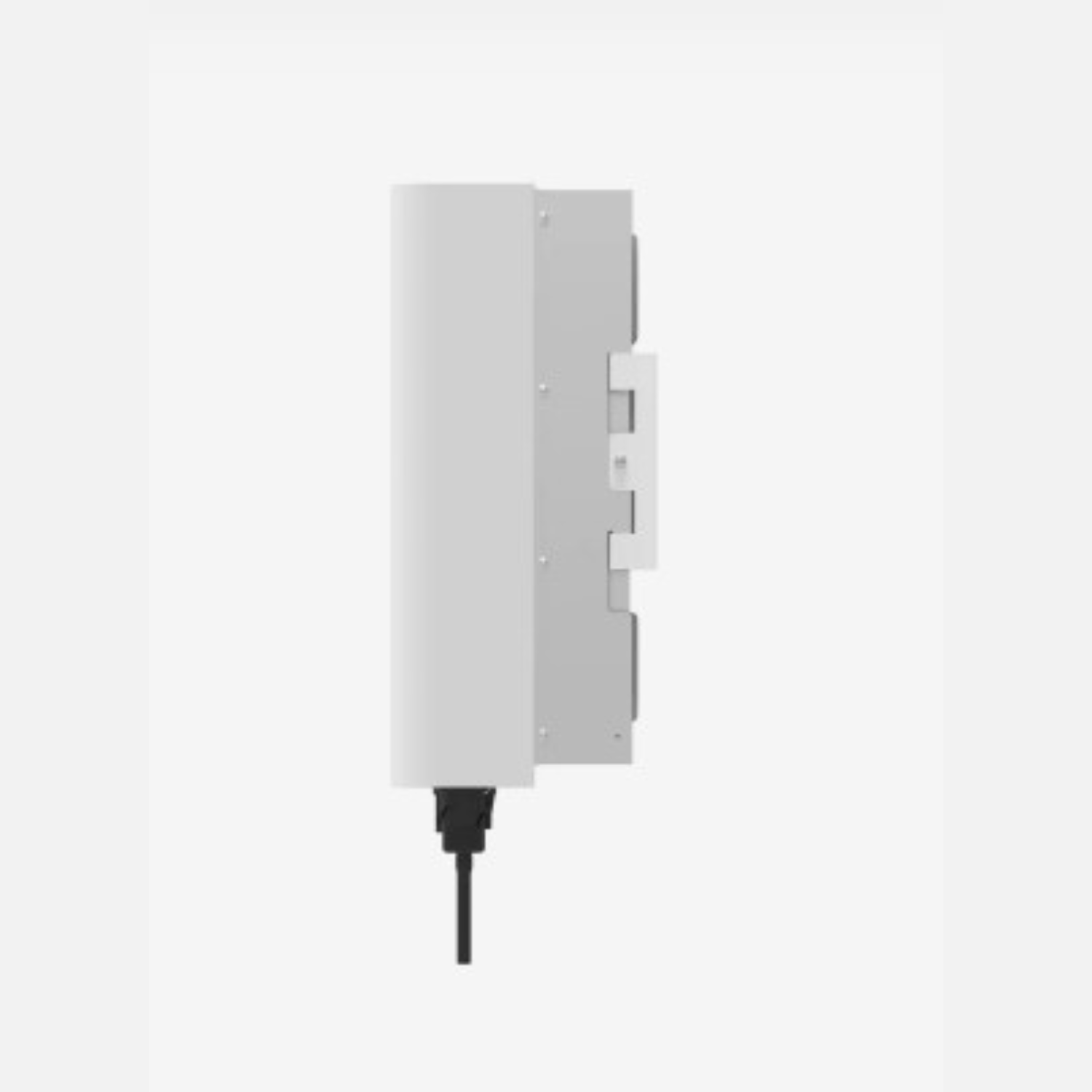

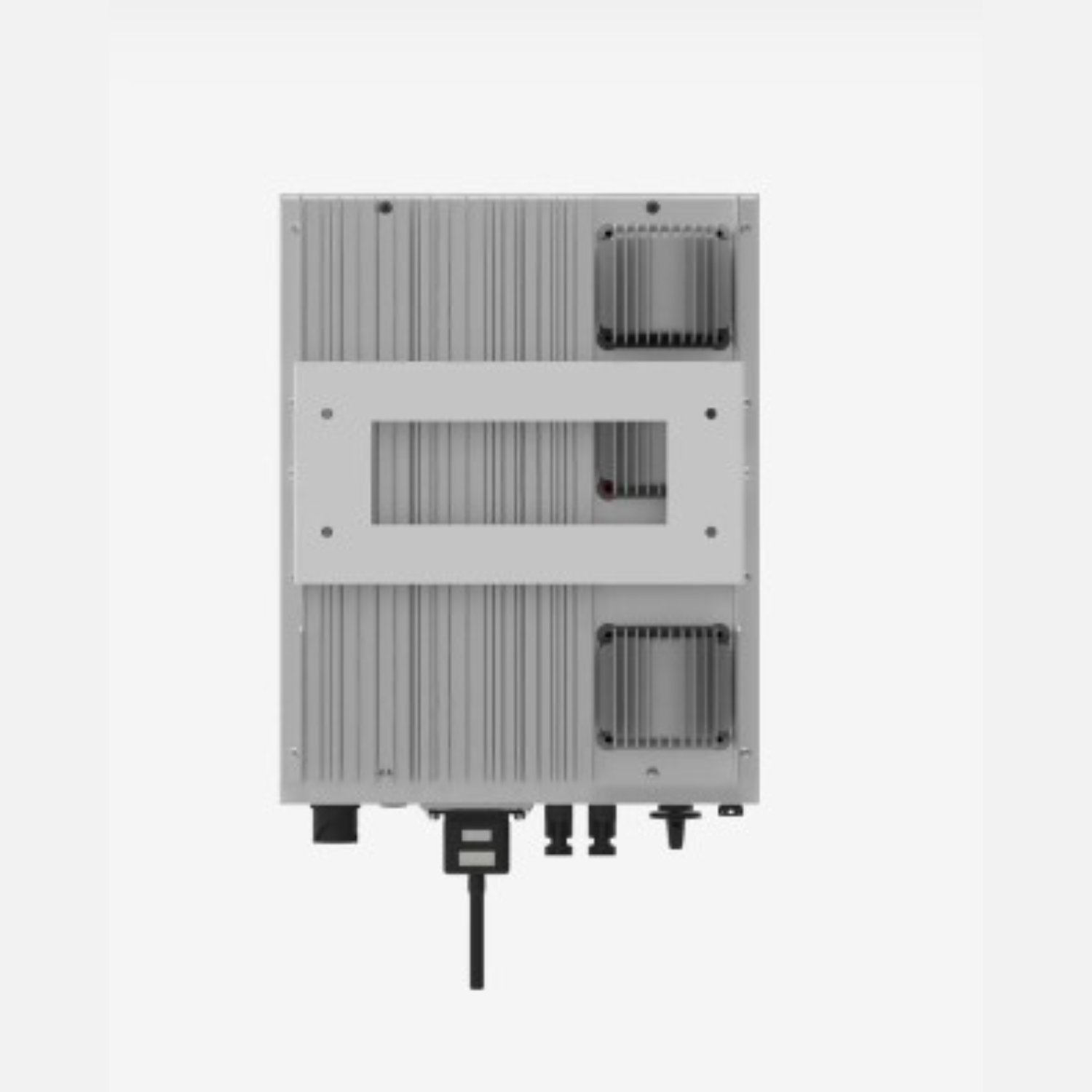

Model: 10kw
Product Description
|
2 MPP tracker, Max. Efficiency up to 97.5% |
|
Zero export application, VSG application |
|
String intelligent monitoring (optional) |
|
Wide output voltage range |
|
Anti-PID function (Optional) |
Quantity :
|
2 MPP tracker, Max. Efficiency up to 97.5% |
|
Zero export application, VSG application |
|
String intelligent monitoring (optional) |
|
Wide output voltage range |
|
Anti-PID function (Optional) |
|
Input Side |
|
|
Max. DC Input Power(kW) |
13 |
|
Max. DC Input Voltage (V) |
550 |
|
Start-up DC Input Voltage(V) |
80 |
|
MPPT Operating Range(V) |
70~500 |
|
Max. DC Input Current(A) |
13+26 |
|
Max. Short Circuit Current (A) |
19.5+39 |
|
Number of MPPT/Strings per MPPT |
2/1+2 |
|
Output Side |
|
|
Rated Output Power(kW) |
10 |
|
Max. Active Power(kW) |
11 |
|
Rated AC Grid Voltage(V) |
220/ 230(Optional) |
|
AC Grid Voltage Range(V) |
160Vac~300 Vac(this may vary with grid standards) |
|
Rated Grid Frequency(Hz) |
50 / 60 (Optional) |
|
Operating Phase |
Single phase |
|
Rated AC Grid Output Current(A) |
43.5 |
|
Max. AC Output Current(A) |
47.8 |
|
Output Power Factor |
0.8 leading to 0.8 lagging |
|
Grid Current THD |
<3% |
|
DC Injection Current(mA) |
<0.5% |
|
Grid Frequency Range |
47~52 or 57~62 (Optional) |
|
Efficiency |
|
|
Max.Efficiency |
97.70% |
|
Euro Efficiency |
97.50% |
|
MPPT Efficiency |
>99% |
|
Protection |
|
|
DC Reverse-Polarity Protection |
Yes |
|
AC Short Circuit Protection |
Yes |
|
AC Output Overcurrent Protection |
Yes |
|
Output Overvoltage Protection |
Yes |
|
Insulation Resistance Protection |
Yes |
|
Ground Fault Monitoring |
Yes |
|
Islanding Protection |
Yes |
|
Temperature Protection |
Yes |
IN SOLAR An inverter is one of the most important pieces of equipment in a solar energy system. It’s a device that converts direct current (DC) electricity, which is what a solar panel generates, to alternating current (AC) electricity, which the electrical grid uses
8 years
